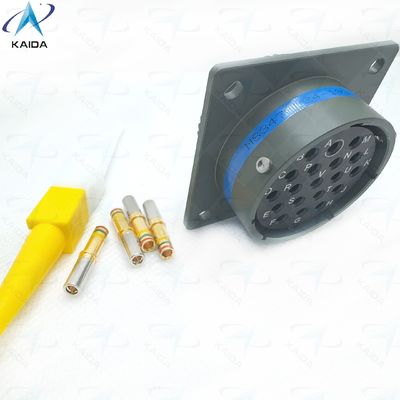

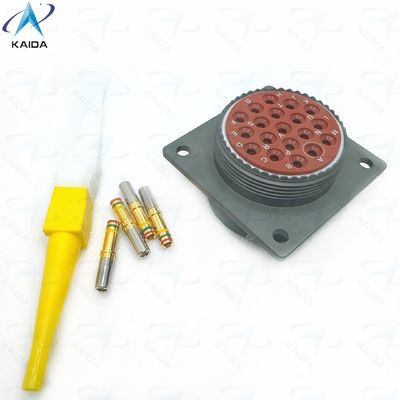

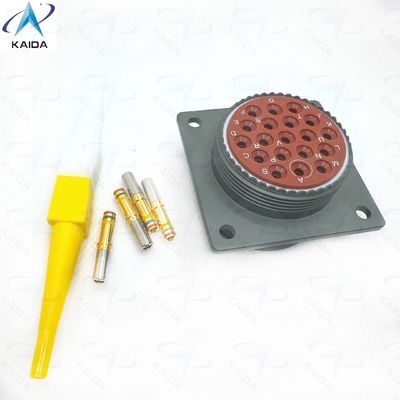

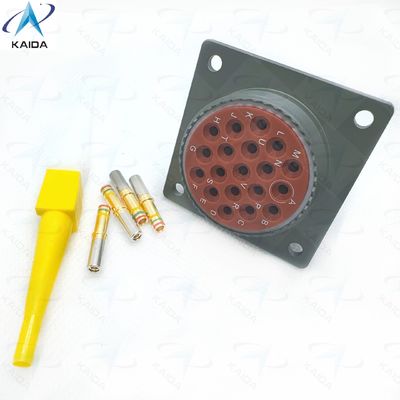

MIL-DTL-26482 Circular Connector Type Square Flange Receptacle for Heavy-Duty Machinery.MS3476W25-19PN.Olive Green Cadmium Plating with 19 Pins.

Part Number:MS3472W25-19SN

Product Description:

The MIL-DTL-26482 Series 2 product, specifically the MS3472W25-19SN, is a high-quality circular connector designed to meet the rigorous requirements of military and industrial applications. With a shell size of 25, this connector offers a compact and robust solution for connecting various electrical components.

One of the key features of the MIL-DTL-26482 Series 2 connector is its wide operating temperature range of -55°C to +125°C. This exceptional temperature range ensures reliable performance in extreme environmental conditions, making it ideal for use in a wide range of applications.

The MS3476W25-19PN connector is designed for crimp contacts, providing a secure and reliable connection that is essential for mission-critical operations. The crimp contact type offers easy installation and maintenance, ensuring quick and efficient deployment in the field.

Furthermore, this MIL-DTL-26482 Series 2 connector is finished with an olive green cadmium plating, which not only provides a durable and corrosion-resistant finish but also enhances the connector's overall aesthetics. The olive green cadmium finish is a common choice for military connectors due to its superior protection against environmental factors.

In conclusion, the MIL-DTL-26482 Series 2 connector, specifically the MS3472W25-19SN, is a reliable and versatile circular connector that excels in demanding environments. With its wide operating temperature range, shell size of 25, crimp contact type, and olive green cadmium finish, this connector is a top choice for military and industrial applications requiring a rugged and dependable electrical connection.

Features:

• Product Name: MIL-DTL-26482 Series 2
• Operating Temperature: -55°C To +125°C
• Voltage Rating: 500V
• Connector Type: Circular
• Current Rating: 7.5A
• Contact Type: Crimp

Technical Parameters:

Applications:

The KAIDA MS3476W25-19PN is a circular connector from the MIL-DTL-26482 Series 2 product line. With a voltage rating of 500V and a temperature range of -55°C to +125°C, this connector is designed for reliable performance in harsh environments.

The MS3472W25-19SN model features 19 contacts with a gold contact finish, ensuring secure and efficient electrical connections. Its olive green cadmium square flange receptacle design makes it suitable for a variety of applications across different industries.

Common Product Application Occasions and Scenarios for the KAIDA MS3476W25-19PN connector include:

1. Aerospace: The rugged construction and high voltage rating of the MS3476W25-19PN connector make it ideal for use in aerospace applications, such as aircraft systems and avionics.

2. Military: The MIL-DTL-26482 Series 2 connector is commonly used in military equipment due to its durability and reliability in extreme conditions.

3. Industrial Machinery: The 19 contacts provided by the MS3476W25-19PN connector make it suitable for use in industrial machinery and equipment that require secure and high-performance connections.

4. Telecommunications: The circular design of the connector and its gold contact finish ensure high conductivity, making it a preferred choice for telecommunications systems.

5. Renewable Energy: The MS3472W25-19SN connector can also be used in renewable energy applications, such as solar panels and wind turbines, where reliability and performance are crucial.

Overall, the KAIDA MS3476W25-19PN connector is a versatile and reliable solution for various product application occasions and scenarios, thanks to its robust design, high voltage rating, and superior contact finish.

Customization:

Customize your MIL-DTL-26482 Series Ⅱ product with KAIDA's Product Customization Services:

- Brand Name: KAIDA

- Model Number: MS3472W25-19SN

- Place of Origin: China

- Finish: Olive Green Cadmium

- Product Name: MIL-DTL-26482 Series Ⅱ

- Gender: Square Flange Receptacle

- Shell size: 25

- Contact Finish: Gold

Support and Services:

The MIL-DTL-26482 Series 2 product offers comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our technical support team is available to assist with product inquiries, troubleshooting, and any technical issues that may arise.

Our services include product training, documentation, and assistance with product configuration and integration. We are committed to providing top-notch support to help customers maximize the benefits of the MIL-DTL-26482 Series 2 product.

Packing and Shipping:

Product: MIL-DTL-26482 Series 2

Description: This product is a high-quality electrical connector that meets MIL-DTL-26482 Series 2 specifications.

Packaging: The MIL-DTL-26482 Series 2 product will be securely packaged in a durable cardboard box with padding to ensure safe transportation.

Shipping: We offer fast and reliable shipping options for the MIL-DTL-26482 Series 2 product. Orders will be processed promptly and shipped with care to reach you in a timely manner.

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is KAIDA.

Q: What is the model number of this product?

A: The model number of this product is MS3472W25-19SN.

Q: Where is this product manufactured?

A: This product is manufactured in China.

Q: Is the MIL-DTL-26482 Series 2 product compatible with other series?

A: The MIL-DTL-26482 Series 2 product is not compatible with other series due to specific design and specifications.

Q: Can this product be used in harsh environmental conditions?

A: Yes, the MIL-DTL-26482 Series 2 product is designed to withstand harsh environmental conditions and has been tested for durability and reliability.

MIL-C-26482-Series 2 Datasheet.pdf
